Raymo FS2 can alternative with WSO 102 FISCHER connector. Works from 2 to 19 pins. Better quality with a reasonable price and short lead time. Raymo provide cable connection solution.We can make all types of cables and connectors as per customers' request. Use any kind of connectors, like Hirose, Cannon, BNC, TNC, D-dtap, D-Sub, USB-A, USB-B, RJ45, JST, Molex, and so on. Just tell us your need, leave the rest to RAYMO.
1. Brief intrction
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED as a professional in design and manufacture all kinds of connectors and special cables, have accumulated rich experience in development and prction for kinds of cables and its related connector adapter.With RED/Teradek Bond/ARRI Camera Cable, Canon / Sony Camera Power Cable, SDI Cable, USB Cable, Video Cable, CCD Cable... We supply different OEM/ODM services serve as different application and requirement.Connectors are compatible with Lemo,Fischer, Binder, Hirose, and 38999 etc.Our prcts are widely used in kinds of harsh environment and applications, like industrial control devices, medical equipment, measuring and inspecting equipment, audio & visual equipment and military, etc. Furthermore, it has excellent compatibility with many leading supplier.
2.Description
S2 Straight circular connector, push pull cable connectors, shell in black color. male solder contacts, 9 pins
- 100% compatible with Fischer connector
- ecure high performance push-pull Self-locking system
- Sealed up to IP68 and Hermetic
- 3 codes alignment Key and Polarized Keying System to avoid cross-interface.
- 360° EMC shielded
- High pin density contributing to equipment miniaturization
- Robust and shock resistant designs
- Available solder and PCB or right angle PCB contact.
- ISO:9001-2015, CE ,RoHS2.0, SGS, Reach
3.Technical Characteristics
| Temperature Range |
- 65° C, +200° C |
| Resistance to vibrations |
15 g [10 Hz - 2000 Hz] |
| Shock Resistance |
100 g [ 6 ms] |
| Salt spray corrosion test |
>96hr |
| IP Rating |
IP50 |
| Life Cycles |
5000 times |
| Certifications |
ISO9001 CE ROHS2.0 SGS |

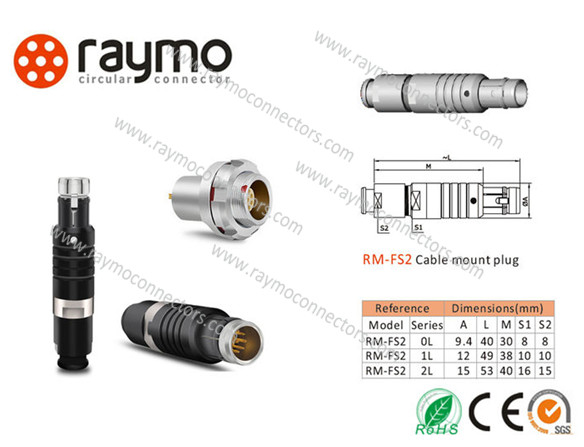

4.Construction and Size
FS2 cable connectors with black color
5. Application
RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application
6.Why choose us
- Free cable solutions
- 100% compatible lemo connector
- OEM or ODM accepted
- Help you save at least 50% cost, Bend relief of plug are free
- Cable assembly offer
- Free sample for confirmation
- Fast delivery time to help you save prction time
7.DIY cable assembly process:
Get the cable through sleeve collet nut in order, then soldering cable wire to the insulator one by one, please importantly note the wire order
Put the split insert carrier to the soldere insulator, to keep the slot of split insert carrier mate perfect with the heave of insulator subassembly
put the collet on the right of position of cable, make sure the heave of collet mate with the slot of split insert carrier pust the insulator subassembly split insert carrier collet into the outer shell in order, make sure the heave of split insert carrier mate with the slot of outer shell
Screw the collet nut tightly Hitch the sleeve to the corresponding step of collet nut.
