M16 680series Threaded Electrical Connector , Male Coaxial Cable DIN 12pin

Name: M16 680series Threaded Electrical Connector Male Coaxial Cable DIN 12pin
Brand: RAYMO
Price: 1 USD

China M16 680series Threaded Electrical Connector , Male Coaxial Cable DIN 12pin wholesale

Brand Name : RAYMO

Model Number : DIN connector M16 680 Series

Certification : Reach SGS RoHS2.0 CE

Place of Origin : Shenzhen,Guangdong,China

MOQ : 1 Piece/Pieces

Price : Negotiable

Payment Terms : T/T, D/A, D/P,L/C, MoneyGram, Western Union

Supply Ability : 5000Pieces/ Week

Delivery Time : 5-7working days

Packaging Details : Plastic Bag & Carton

Prct Name : Din Connector male connector

Shell size : M16 680Series

Contact no. : 4pin male contact

Insulator : PPS

Shell Color : silver colour

Locking system : screw fixing

Contact Now

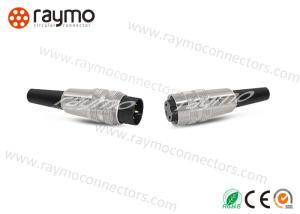

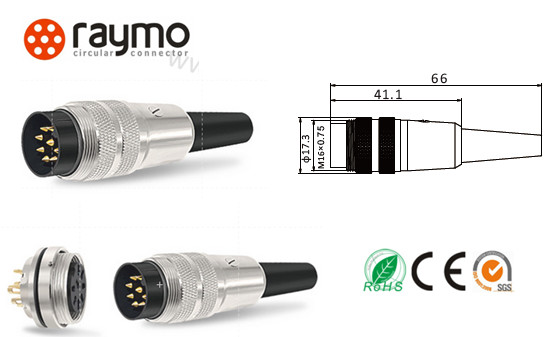

DIN 12pin male cable connectors with threaded joint M16 680series

Din 12pin male cable connector with threaded joint M16 680 series FGG plug
Contact: 12pin male contact , shell in brass material with nickel plated
Used for high speed camera

Main Features

Screw-locking system
Cheap cost
fast delivery
lightweight construction ideal for miniature and portable devices
Long prct durability 500mating cycles guaranteed

Technical Charactueristics

Mechanical data	Insertion force/contact ≤ 5.0 N 1
	Withdrawal force/contact ≥ 1.2 N (3-8 poles)
	≥ 0.9 N (12 poles) 1
	Tightening torque connector 1-3 Nm
	Tightening torque nut 1-3 Nm
	Protection class IP40 2

Connectable conductors for solder area

Section ≤ 0.75 mm² (AWG 20) (3-8 poles); ≤ 0.25 mm² (AWG 24) (12 poles)

Electrical data

Contact resistance	≤ 5 mΩ
Rated current	5 A (Tamb 40 °C, 3-8 poles);3 A (Tamb 40 °C, 12 poles)
Rated voltage	with pollution degree 1:
	300 V (versions 30, 40, 50/6, 60, 70)
	100 V (versions 50, 71, 80, 81)
	160 V (Polbild 120)
	with pollution degree 2:
	250 V (versions 30, 40)
	32 V (versions 50, 71, 80, 81)
	160 V (versions 50/6, 60, 70, 120)
Rated impulse voltage	1500 V (versions 30, 40, 50/6, 60,70, 120)
Rated impulse voltage	500 V (versions 50, 71, 80, 81)
Material group	II (IEC)/1 (UL) (400 ≤ CTI < 600)
Overvoltage category	I
Insulation resistance	> 100 MΩ
